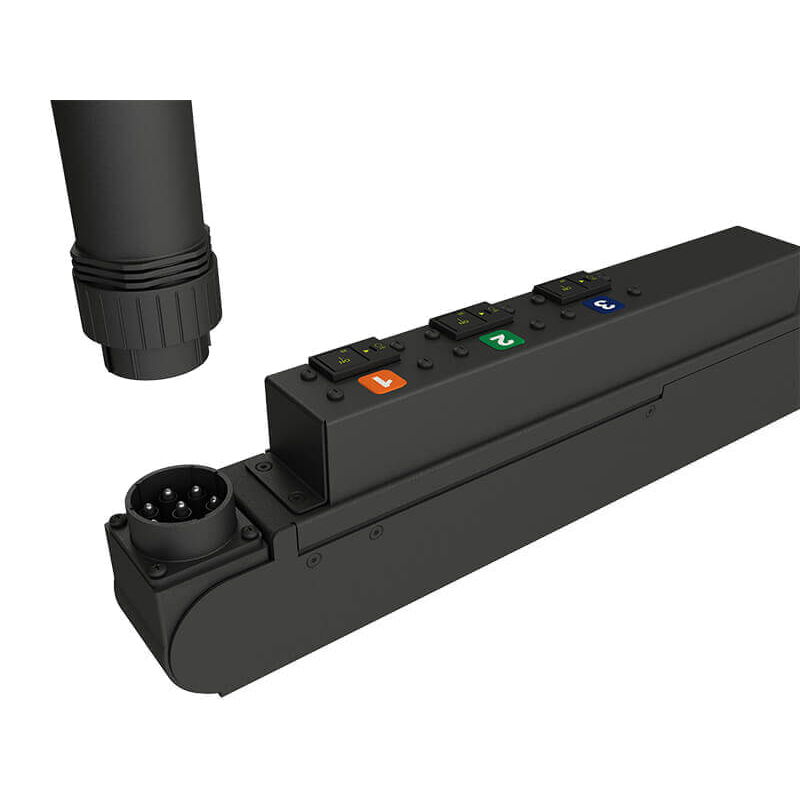

Vertiv Geist Universal Power Distribution Unit

The UPDU is a versatile rack power distribution unit featuring a universal input and detachable Facility Side Cable (FSC - sold separately). The UPDU supports common AC power configurations ranging from 16A-60A and 120V-415V. Available in basic to intelligent models featuring advanced remote power monitoring, environmental monitoring, and optional outlet level switching. The UPDU simplifies critical IT infrastructure deployments by allowing a single model to be installed around the world.

More information   Manufacturer's Website

Fill out my online form.
The easy to use Wufoo form builder helps you make forms easy, fast, and fun.
Technical Specifications
ModelsCapacityInput VoltageOutput VoltageOutput OptionsLocationHeightWidthDepthWeight
UI30006L 11kW max Defined by FSC Defined by FSC 24 U-Lock C13, 12 U-Lock C19  Rack 70 in 2 in 2.25 in 22 lbs
UI30007L 22kW max Defined by FSC Defined by FSC 24 U-Lock C13, 6 U-Lock C19   Rack  70 in  2 in  2.25 in  21 lbs
UU30009L 11kW max Defined by FSC Defined by FSC 30 U-Lock C13, 6 U-Lock C19   Rack  72 in  2 in 2.6 in 27 lbs
UU30010L 22kW max Defined by FSC Defined by FSC 18 U-Lock C13, 12 U-Lock C19   Rack  72 in  2 in  2.6 in  25 lbs
UI30023
 11kW max Variable Variable 42 Combination Outlets C13/C19 Rack 72 in 2 in  2.25 in 22 lbs
UI30026
 22kW max Variable Variable 30 Combination Outlets C13/C19 Rack 66.25 in 2 in  2.5 in 21 lbs
