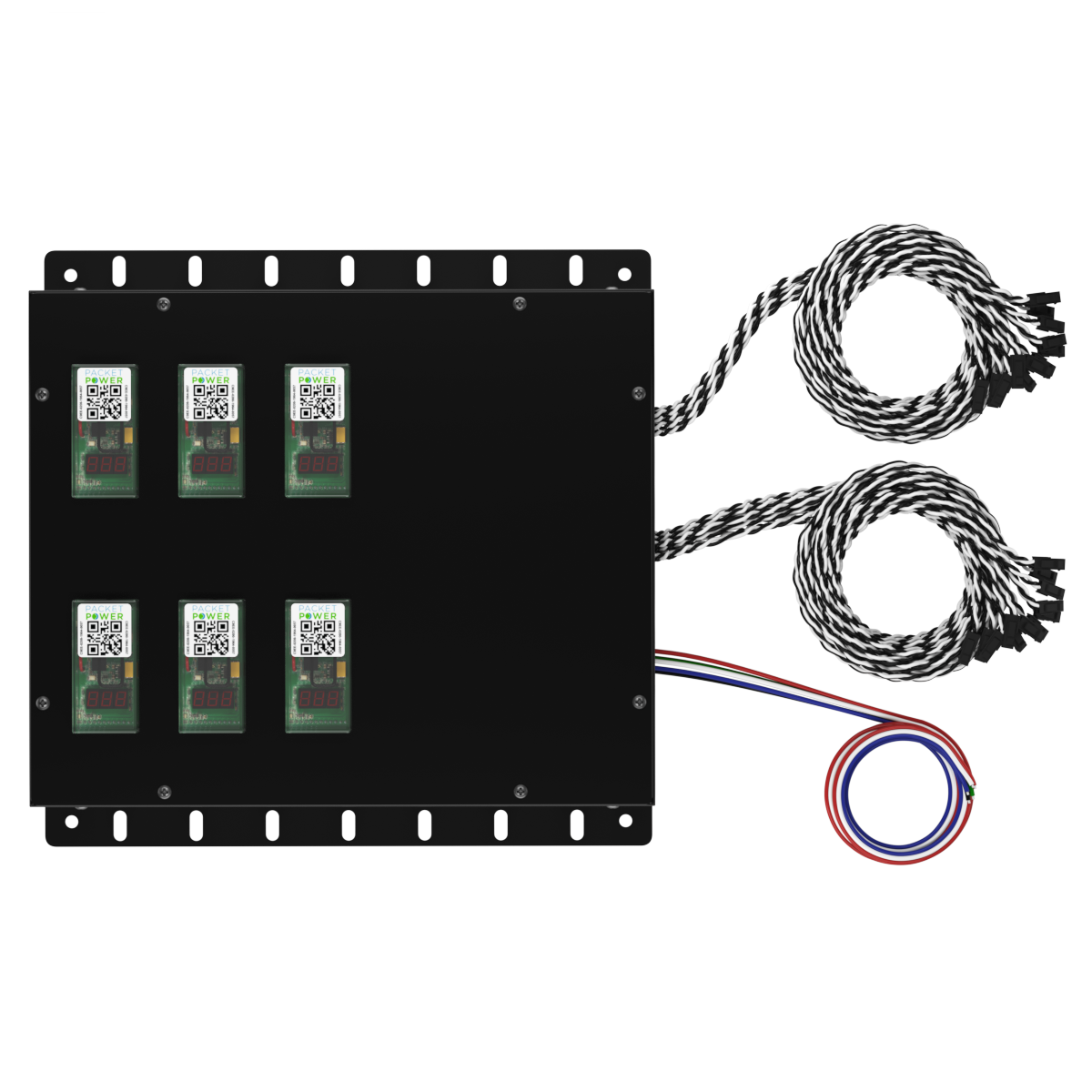

Packet Power Selective Circuit Monitoring

Easily and affordably add power monitoring to existing equipment only where needed, and configured exactly as required. Whether you need to measure the main infeed circuit to a panel or monitor several circuits on a switchgear, our wireless multi-meter monitors give you the flexibility you need to measure what matters.

Built to your specification to cut installation time in half:

  • Voltage source type and quantity
  • Voltage lead color and length
  • CT type, rating and quantity
  • CT lead length
  • Wire exit location
  • Over-current protection
  • Current-only or full power or mixed

More information    Manufacturer's Website

Fill out my online form.
The easy to use Wufoo form builder helps you make forms easy, fast, and fun.
Technical Specifications
MeasurementCommunicationsEnvironmental & Mechanical
Measurements: V, A, VA, W, Wh, Power Factor, Hz, THDI, THDV Operating frequency: 860 to 930 MHz and 2.4 GHz (frequencies vary by region) Operating environment: -7° to 75°C (20° to 167°F); 5% to 95% non-condensing
Accuracy: ±1.0% accuracy (CT dependent) Wireless network protocol: Frequency hopping self-configuring load-balancing mesh Water and dust resistance:NEMA 1/IP20 (indoor use); NEMA 4X available on some products
Input Voltage: 100-480V AC Data output (Gateway): SNMP and Modbus TCP/IP protocols Power Usage: 1-6W depending on the product
Input Voltage Configuration: L-N, L-L, 3W+G, 4W+G Firmware updates: Wireless Certification:UL 61010-1, CSA C22.2 No. 61010-1, FCC, CE (UL 508A listed assembly available)
Current Range: Up to 5000A Typical transmission range: 10 to 30 meters indoors between any two devices in mesh network
Frequency: 50/60 Hz Antenna: Fully enclosed, fixed configuration
  Monitoring unit to gateway ratio:Up to 150 monitoring units per gateway with unlimited Gateways per site
  Multi-site support: Yes
  Encryption: 128-bit encryption (Gateway)
  Local Display: Volts, Amps, and Watts
