view product galleryThe Liebert NXL 3 phase, on-line UPS is available in both single and multi-module configurations. Multi-modules are available in both 1+N (distributed static switch) and N+1 (centralized static switch) configurations. Add matching battery cabinets and maintenance bypass cabinet for a complete power solution.
| Model | Power Rating | Input Voltage | Output Voltage | Height | Depth | Width | Weight |
|---|---|---|---|---|---|---|---|
| NXL 1100kVA | 1100kVA |
480 / 575 / 600 Volts |
480 / 575 / 600 Volts |
78.7" | 47.2" | 228.3 " | 21,800 lbs |
| NXL 800kVA | 800kVA |
480 Volts |
480 Volts |
78.7" | 47.2" | 184.8" | 16,120 lbs |
| NXL 625kVA/562.5kW | 562.5kW |
480 Volts |
480 Volts |
76.8" | 39.4" | 140.5" | 13,200 lbs |

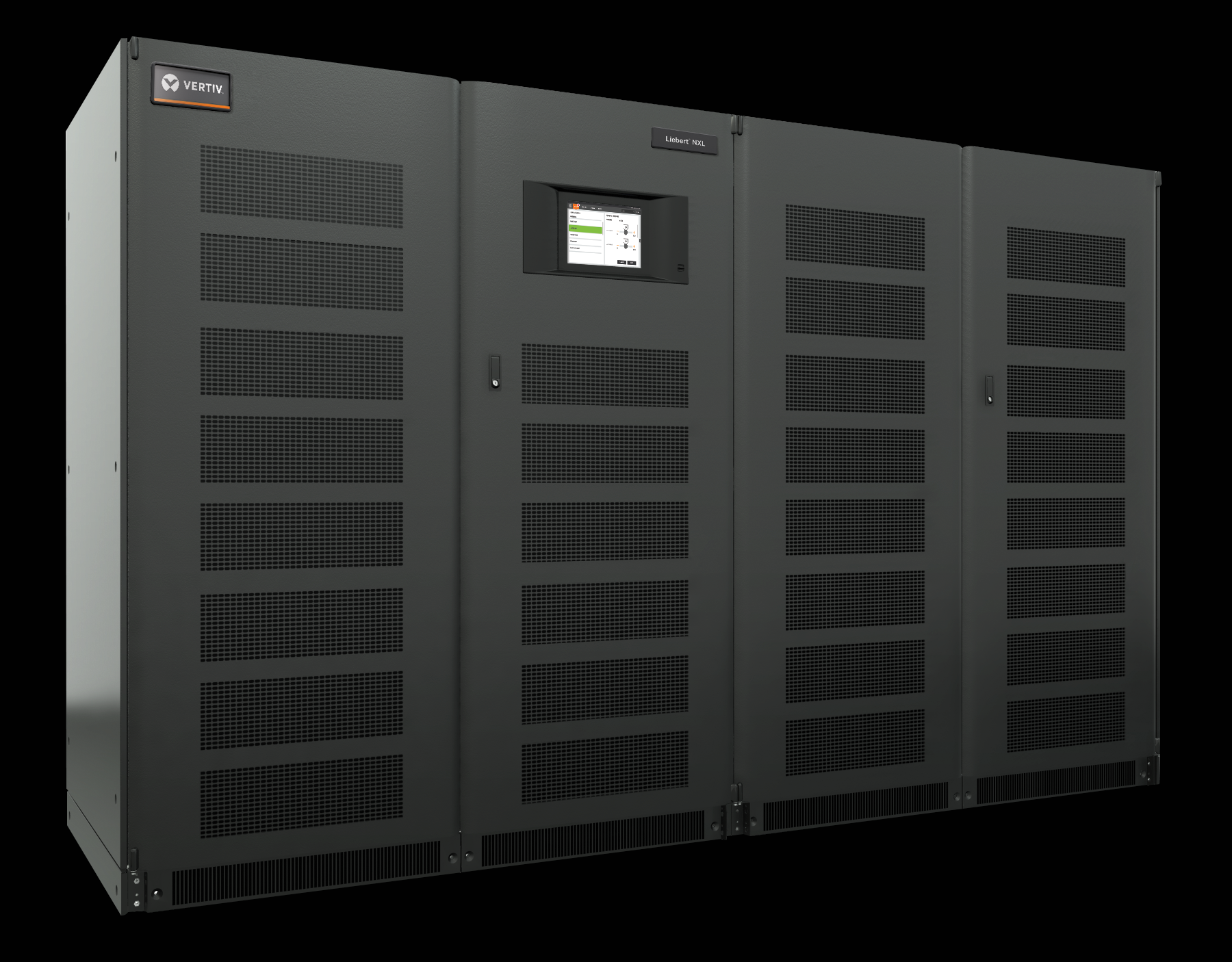

| NXL 750kVA/675kW | 675kW |
480 / 575 / 600 Volts |
480 / 575 / 600 Volts |
76.8" | 39.4" | 140.5" | 13,200 lbs |
| NXL 625kVA | 625kW |
480 / 575 / 600 Volts |
480 / 575 / 600 Volts |
76.8" | 39.4" | 140.5" | 13,200 lbs |
| NXL 500kVA/450kW | 450kW |
480 Volts |
480 Volts |
76.8" | 39.4" | 111.6" | 9450 lbs |
Brochures
Manuals
- Liebert NXL Operation and Maintenance Manual
- Liebert Large System 3-Phase UPS Battery System Installation Manual
- Liebert NXL System Control Cabinet Operation Manual
- Liebert Battery Interface Box Product Specs/Installation Sheet
- Liebert NXL Power-Tie Controls Installation Manual
- Liebert NXL Power-Tie Controls Manual
Technical Specs
