Vertiv Liebert RX

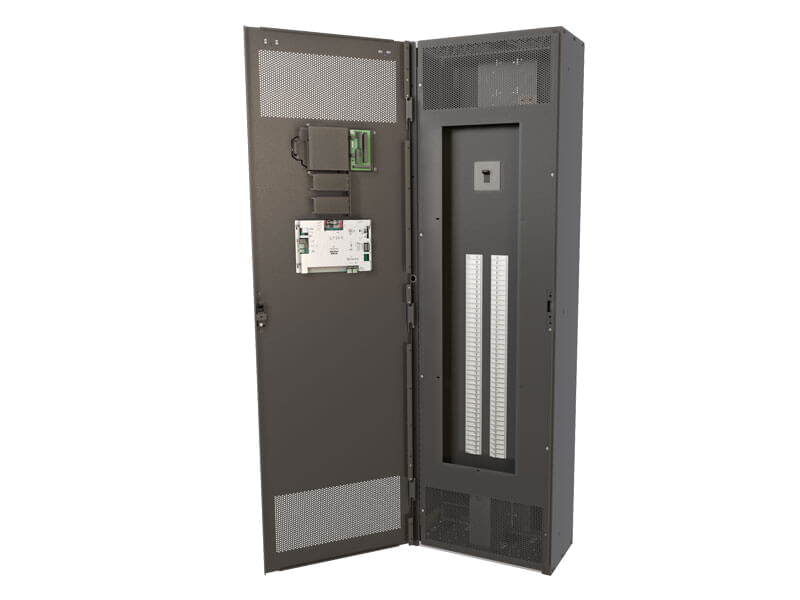

The Liebert RX remote power distribution cabinet supplies packaged power in a 24" X 12" of space. The 400A 84 pole panelboard offers monitoring options and multiple configuration possibilities to meet data center needs. Along with branch circuit level monitoring the RX can be a stand alone unit or clustered in configuration blocks.

  • 84 poles in a 24”x12” footprint
  • Up to 168 poles in a 24”x24” footprint.
  • Offers current and branch circuit monitoring options
  • Floor or wall mount, or attach to supports at end of rack aisle.
  • Installs with tool-less mounting to Vertiv DCM Racks.
  • Allows configuration as a single unit, or two, three or four cabinet clusters

More information   Manufacturer's Website

Technical Specifications
ModelsCapacityInput VoltageOutput VoltageHeightWidthDepthWeight
Liebert RX 400 Amp Distribution Cabinet 400 Amps 120 - 480 V 120 - 480 V 78.7 in / 2000 mm 24 in / 610 mm 13 in / 328 mm 225 lb / 102 kg
