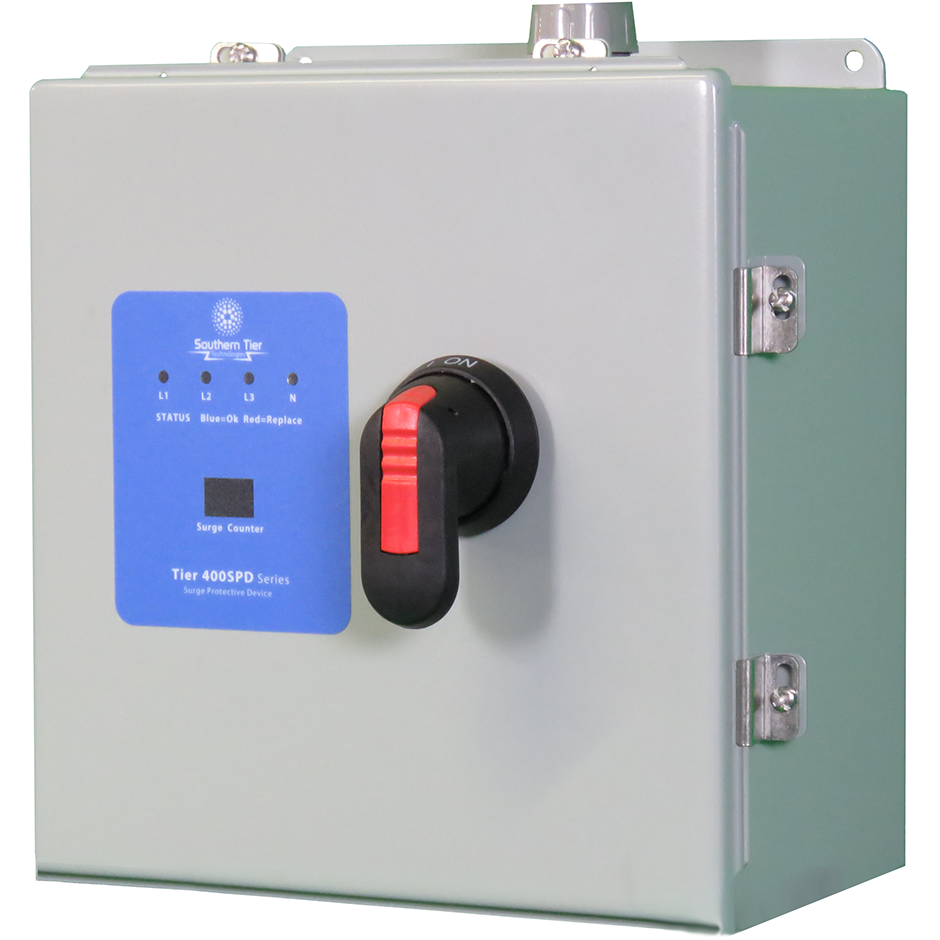

Tier 460

Southern Tier Technologies developed a series of surge products designed specifically to protect your motors,  the Tier 460SPD series. The product family is available in a wide range of voltage and surge levels, and with either a Contact Restart or Shunt Trip Controller. Custom specifications can be accommodated.

Specifications per model
ModelSurge Capacity ModeConnectionMotor ProtectionContractor CurrentEnclosure
T46_______ADM3_C_

50kA - 150kA

Disconnect

 Shunt Trip or Contactor 30, 60, or 90 Amp NEMA 4 (16.00” x 16.00” x 8.00”)
T46____025ADM2_C_

25 kA

 Disconnect Shunt Trip or Contactor 30, 60, or 90 Amp NEMA 4 (13.50” x 13.00” x 6.375”)
T46000_000NDM2NS_

N/A

 Disconnect Shunt Trip or Contactor 30, 60, or 90 Amp NEMA 4 (13.50” x 13.00” x 6.375”)
T46_______ALM3_C9 50kA - 150kA Terminal Block Contactor 90 Amp NEMA 4 (16.00” x 16.00” x 8.00”)
T46_______ALM2_C_ 50kA - 150kA Terminal Block Shunt Trip or Contactor 30 or 60 Amp NEMA 4 (13.50” x 13.00” x 6.375”)
T46____025ALM2_C_ 25kA Terminal Block Shunt Trip or Contactor 30, 60, or 90 Amp NEMA 4 (13.50” x 13.00” x 6.375”)
T46000_000NLM2NS_ N/A Terminal Block Shunt Trip or Contactor 30, 60, or 90 Amp NEMA 4 (13.50” x 13.00” x 6.375”)
T46____025ARP5_S_ 25kA Line Cord/Receptacles Shunt Trip or Contactor 30 Amp NEMA 4X (8.695” x 11.25” x 4.00”)
T46000_000NLP5NS_ N/A Terminal Block Shunt Trip or Contactor 30 Amp NEMA 4X (8.695” x 11.25” x 4.00”)
