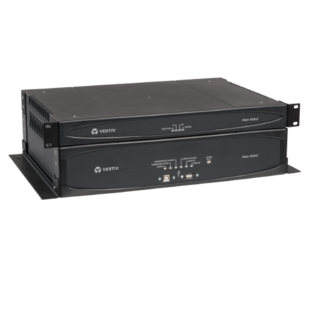

Alber BDS-50

Real time battery monitoring for 12V/16V up to 50 modules in series.
  • Overall String Voltage
  • Individual Cell Temperatures
  • Discharge and Float Currents -
  • Thermal Runaway Management -
  • Individual Cell Voltages -Ambient Temperature
  • AC Ripple Current System Advantages and Features
  • New patented DC test verifies the integrity of the entire battery system
  • No onsite computer is required for data collection and alarming - multiple remote communication options
  • Easily integrates to building management systems -Manage your battery assets across multiple sites with the Battery Xplorer Enterprise software
  • Self-Calibrating

More information   Manufacturer's Website

Fill out my online form.
The easy to use Wufoo form builder helps you make forms easy, fast, and fun.
Technical Specifications
ModelsProduct LineMountingUser InterfacePower InputPortsHeight WidthDepthWeight
Alber BDS Alber BDS Top of UPS Battery Cabinet BMDM Less than 2.0 amps at 115 VAC ±10% 60Hz USB + RS-232 DB-9 connector 78" 19" 16,2" 34lbs
